name: QT4-15 automatic habiterra cement pallet hollow brick block making machines plant dubai price
date: 2022-04-22 15:35:59
view: 292
about:

  Shandong Canhua International Trade Co.,Ltd. was established in 1994. We are professional machinery enterprise with perfect incorporation of development, production, sales and service. Our mainly products includes interlocking block machine, hydrauli...




DETAIL



QT4-15 automatic habiterra cement pallet hollow brick block making machines plant dubai price


QT4-15(图1)

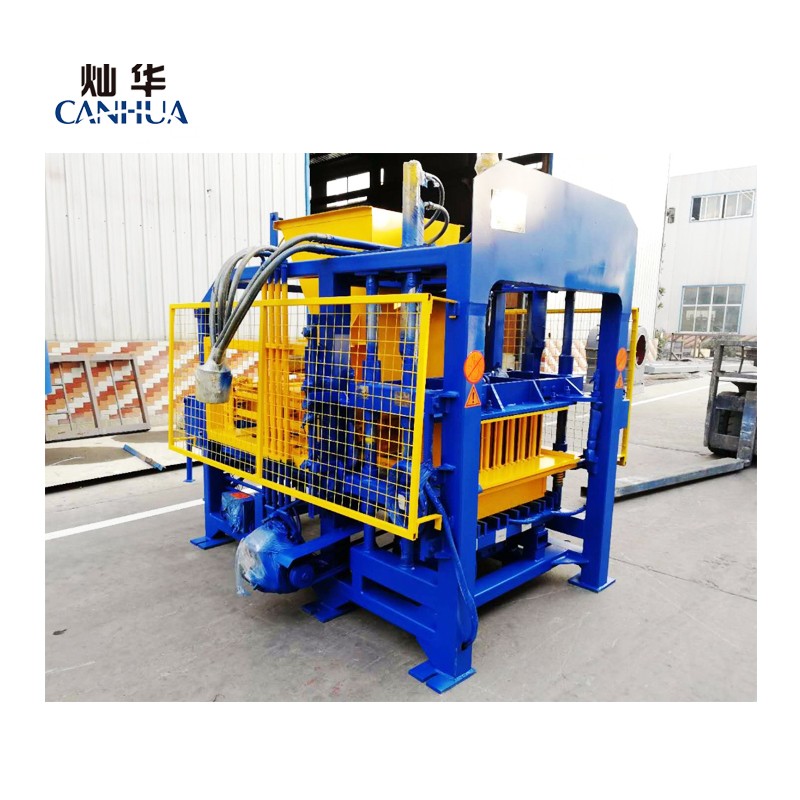

It is also called burn-free block making machine. It is usually used to produce concrete bricks. These concrete bricks don’t need to be burned. They can be put into use only after a short period of drying.

1). Equipped with color face material feeding device,it could make various color face bricks,through-body environmental protection bricks,road curb rocks,hydraulic blocks and solid bricks and so on.

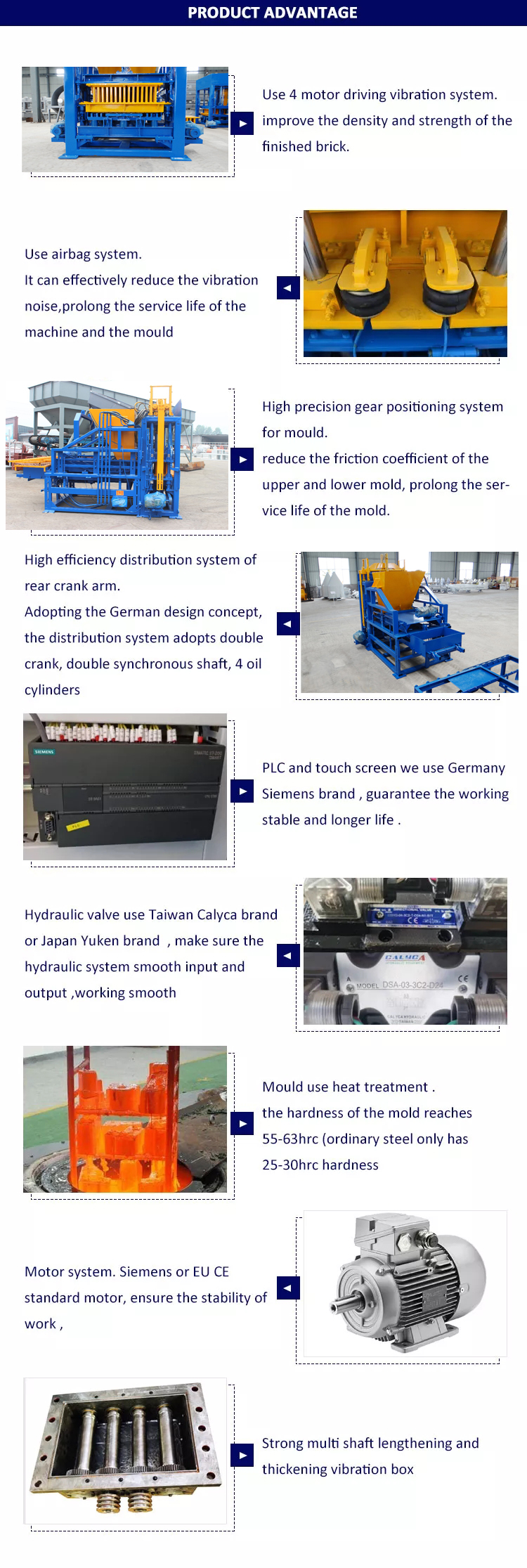

2). It is a compact automatic concrete block making machine with electric and hydraulic system,each procedure action locks with each other to guarantee the machine operate safely,easily and dependably.

QT4-15(图2)

1.Main Technical Parameter

Dimension of host machine

4000x1800x2800mm

Pallet size

850x580x25mm

Weight of host machine

3.5T

Vibration force

50KN

Installed capacity

26kw

Molding cycle

15-20s

Intensity of pressure

15Mpa

Vibration frequency

2800-4500

QT4-15(图3)

QT4-15(图4)

QT4-15(图5)

QT4-15(图6)

QT4-15(图7)

QT4-15(图8)

QT4-15(图9)

Theoretical Capacity

Size(LxWxH)

Cycle

Pcs/Mould

Pcs/Hour

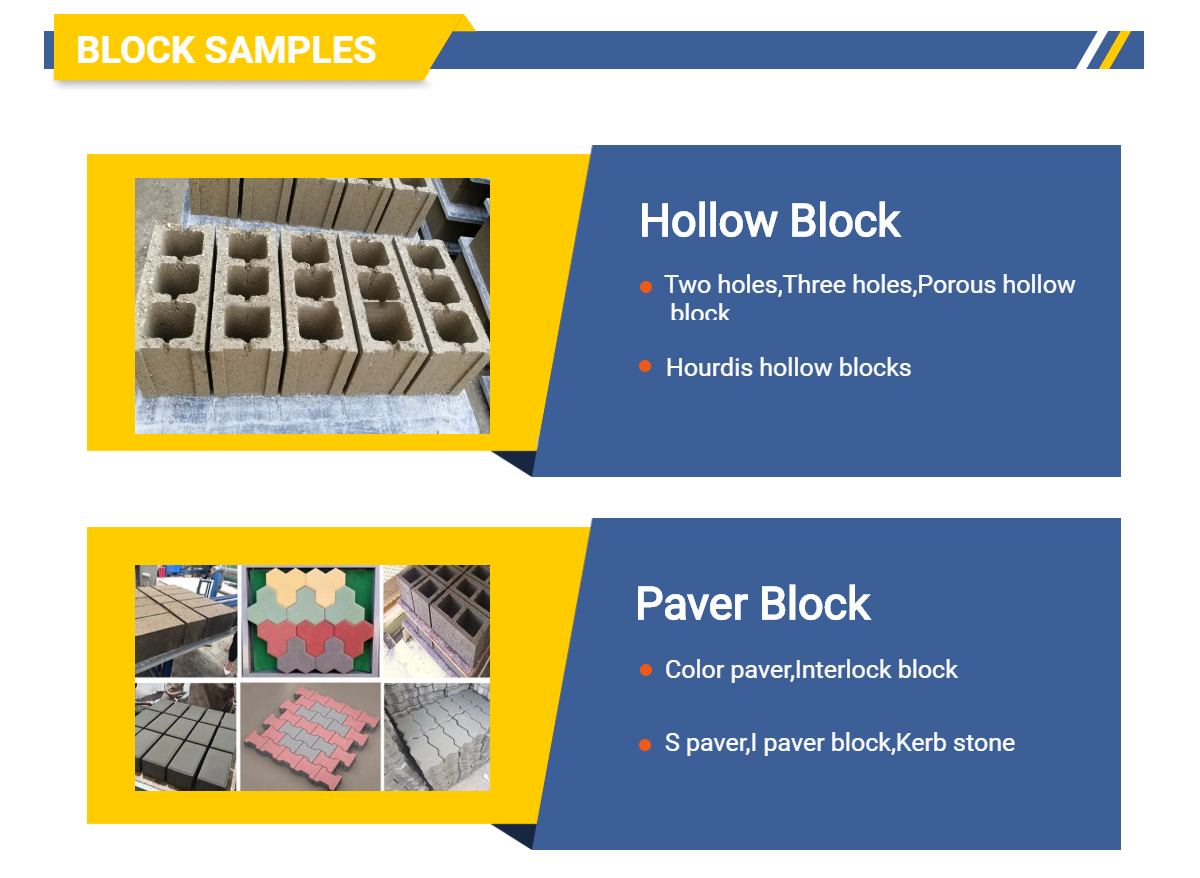

400x200x200mm hollow block

15-20s

4

720-960

240x115x90mm porous block

15-20s

12

2160-2880

240x115x53mm solid brick

15-20s

26

4680-6240

200x100x60mm paver

20-25s

16

2304-2880

200x163x60mm paver

20-25s

12

1728-2160

QT4-15 automatic habiterra cement pallet hollow brick block making machines plant dubai price

1). The whole line automatic concrete block production line equipment is mainly the full container sea shipping,

2). Block machine equipment finish manufacturing and testing, next to clean up, and then do another paint protection.

3). Before shipment to use plastic film winding, wrapped the entire concrete block  machine in case of water or moisture.

4). Then load the concrete hollow block machine into the container by forklift.

5). During loading to tighten the machine with reinforcement ring in container, so as to avoid the damage by transport bumps on the brick making machine.

QT4-15 automatic habiterra cement pallet hollow brick block making machines plant dubai price

QT4-15 automatic habiterra cement pallet hollow brick block making machines plant dubai price

QT4-15 automatic habiterra cement pallet hollow brick block making machines plant dubai price

QT4-15(图14)
