QT40-1 china cheap semi automatic concrete cement brick block making machine price in fiji


QT40-1 china cheap semi automatic concrete cement brick block making machine price in fiji

1.Introductions of QT40-1 Burning Free Brick Making Machine:

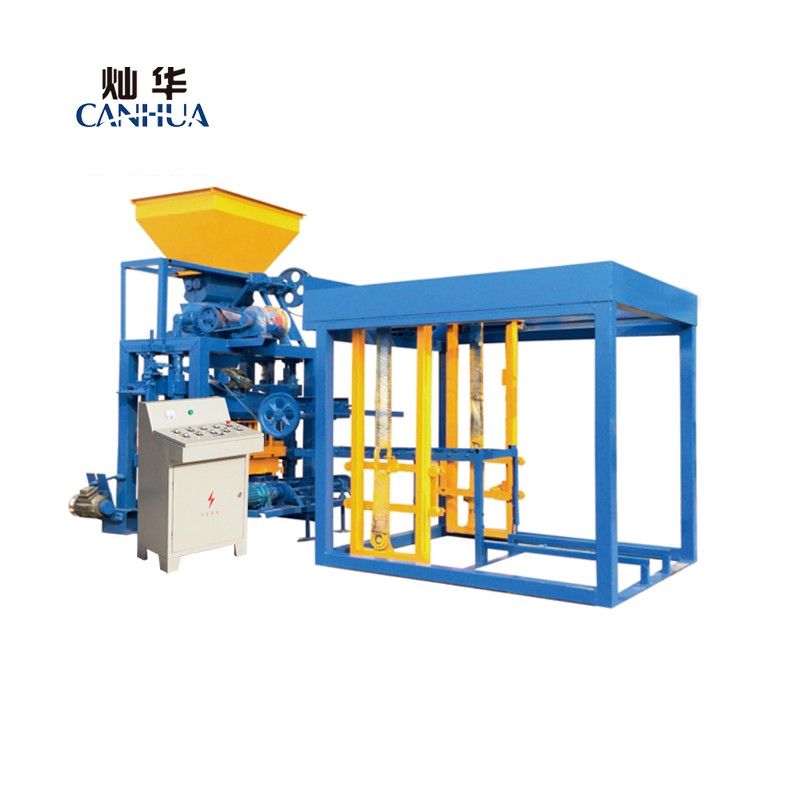

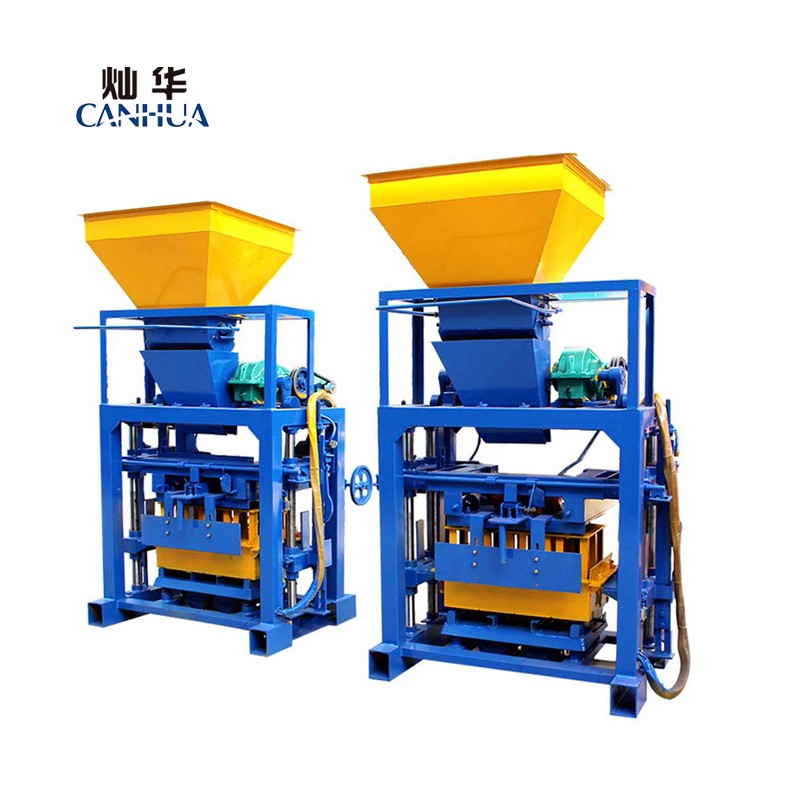

QT40-1 brick machine is a low cost cement brick making machine, it is also a concrete block moulding machine.

With strong structure and simple operation, it is your best choice to start your hollow block/solid block/road paver block factory.

1).This hollow brick block making machine needs electricity as power source. A stable power supply is required. Otherwise you need diesel generator.



2).QT40-1 is a successful machine model, widely used in China and overseas, like USA,AFRICA,EAST ASIA,ETC.



3).The raw material includes crushed stone,sand,cement,water.All these are blended in mixer with a certain ratio.

The ratio is 50%/40%/9%/1%,then you get the qualified concrete,which are molded into brick/block by QT40-1 brick machinery.

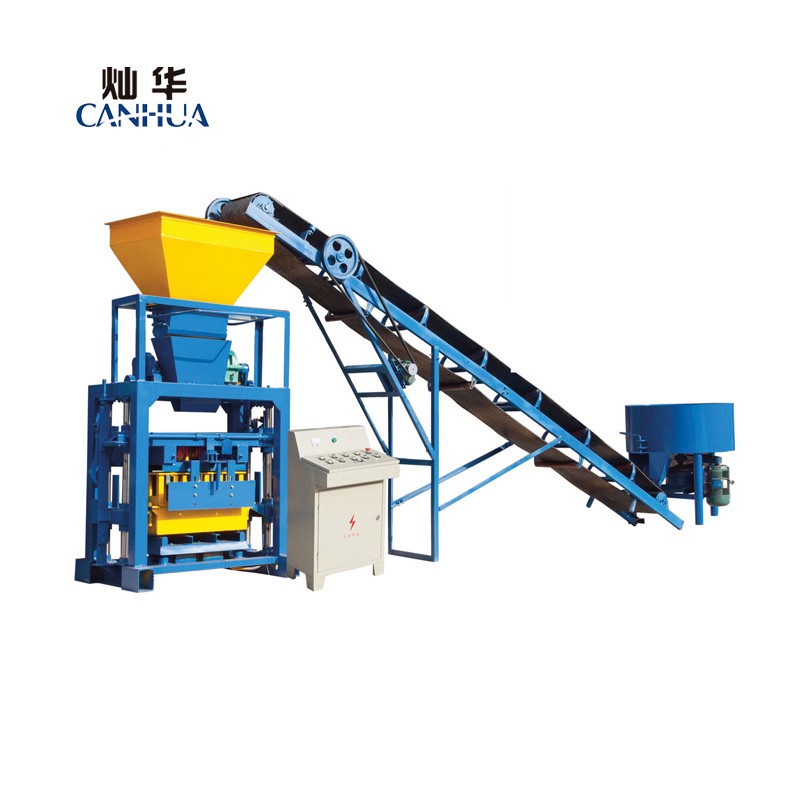

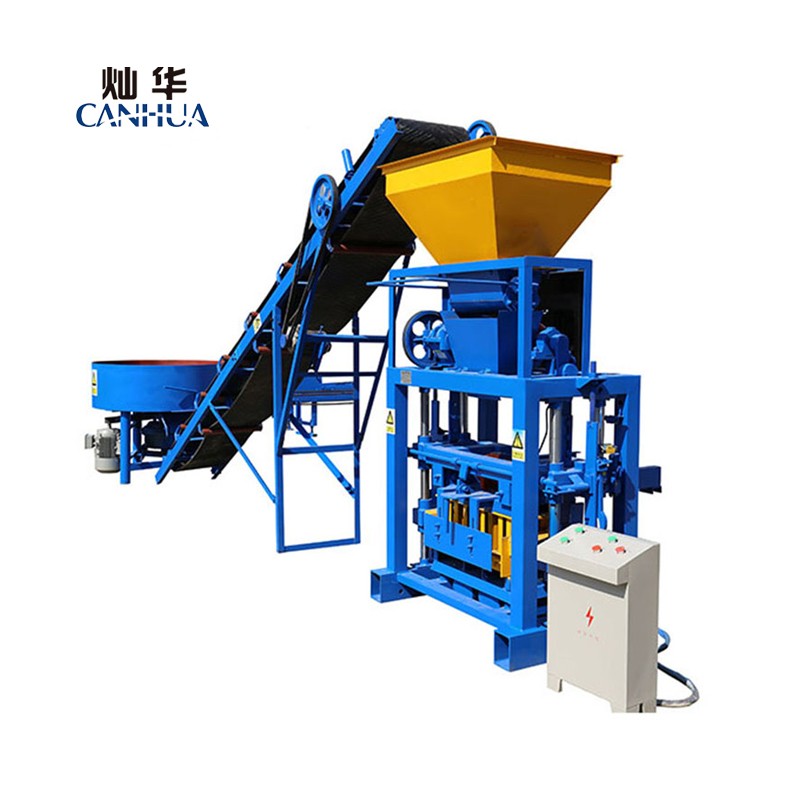

4).To increase the production capacity, you need buy the belt conveyor,mixer.These three machines to set up a simple concrete hollow brick block production line.

Check below picture, see how it works.

THIS IS BURNING FREE CEMENT BRICK MACHINE,MEANS NO NEED BURNING AFTER BRICK IS MOLDED.

QT40-1 china cheap semi automatic concrete cement brick block making machine price in fiji

1. Main Technical parameter

Dimension of host machine

1350x1460x1800MM

Total machine power

8.8KW

Mould period

40S

Vibration force

30KN

Pallet size

850x450x25MM

Mixer Model

JQ350

Workshop area

60m2

Weight

1.1T



2. Concrete Mixer

Model No.

JD350

Feeding volume

560L

Discharging volume

350L

Productivity

≥4cubic meter per hour

Blending blade

3 pcs

Working method

Drived by electric motor

Power

7.5kw

Overall dimension

1.25×1.25×1.3M

Total weight

400KG



3.Concrete Block Samples Productivity

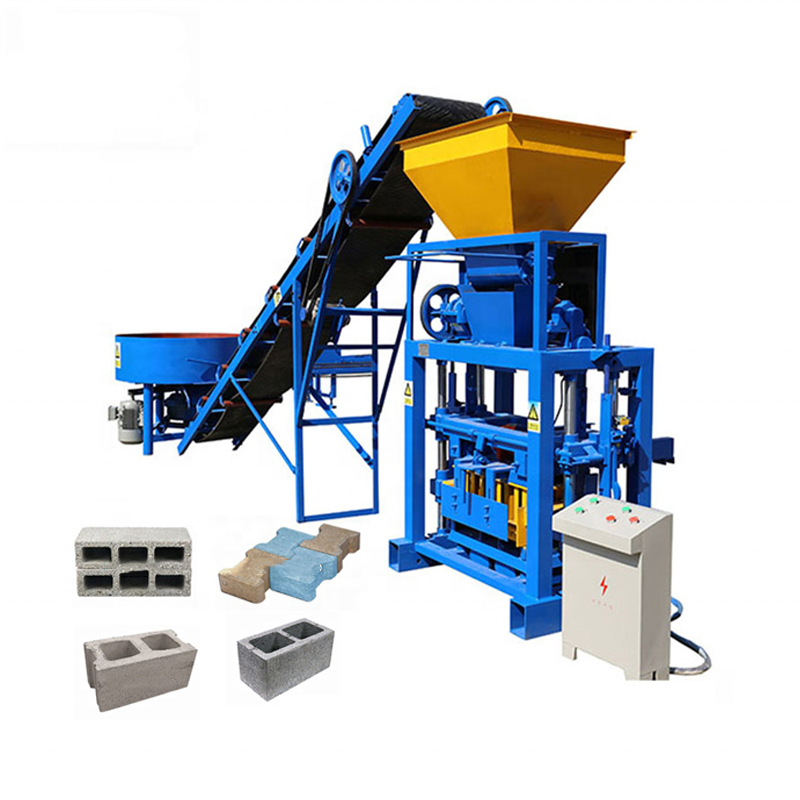

This small block machine can make hollow blocks with groves at both sides. Also can make pavers, normal gardening pavers are also available.

Size (LxWxH)


Pcs/mould

Pcs/Hour

Pcs/Shift

400x100x200MM

QT40-1 china cheap semi automatic concrete cement brick block making machine price in fiji

7

280-380

4000-5040

400x150x200MM

5

360-450

2880-3600

400x200x200MM

 QT40-1 china cheap semi automatic concrete cement brick block making machine price in fiji



4

280-380

2240-2800

400x250x200MM

3

220-270

1760-2160

Holland paver

 QT40-1 china cheap semi automatic concrete cement brick block making machine price in fiji

14

1600

12800

"S" Paver

QT40-1 china cheap semi automatic concrete cement brick block making machine price in fiji

8

720

5760

"I" Paver

QT40-1 china cheap semi automatic concrete cement brick block making machine price in fiji

8

720

5760

QT40-1 china cheap semi automatic concrete cement brick block making machine price in fiji(图8)

QT40-1 china cheap semi automatic concrete cement brick block making machine price in fiji

QT40-1 china cheap semi automatic concrete cement brick block making machine price in fiji

QT40-1 china cheap semi automatic concrete cement brick block making machine price in fiji(图11)

QT40-1 china cheap semi automatic concrete cement brick block making machine price in fiji(图12)

QT40-1 china cheap semi automatic concrete cement brick block making machine price in fiji

(1)   Packing: Our packaging is safety export package (wood box) for LCL, Nude package for full container or according to Customer's request.

(2)   Shipping: Finished produce the machine in 20-25 days after we receive your deposit, delivery the machine in 10 days after receive your balance payment.

(3)   Payment: We accept T/T, L/C, Money Gram, West Union, etc. payment method, all can negotiate.

(4)   Service: We supply full line top service from get your inquiry to install the brick maker machine. We supply you free installation machine, free training your workers and one set free spare parts. Our engineer can go to your site design the factory for you.

If you need some other supporting facilities, please tell us what do you want and we will offer you a nice quotation.
