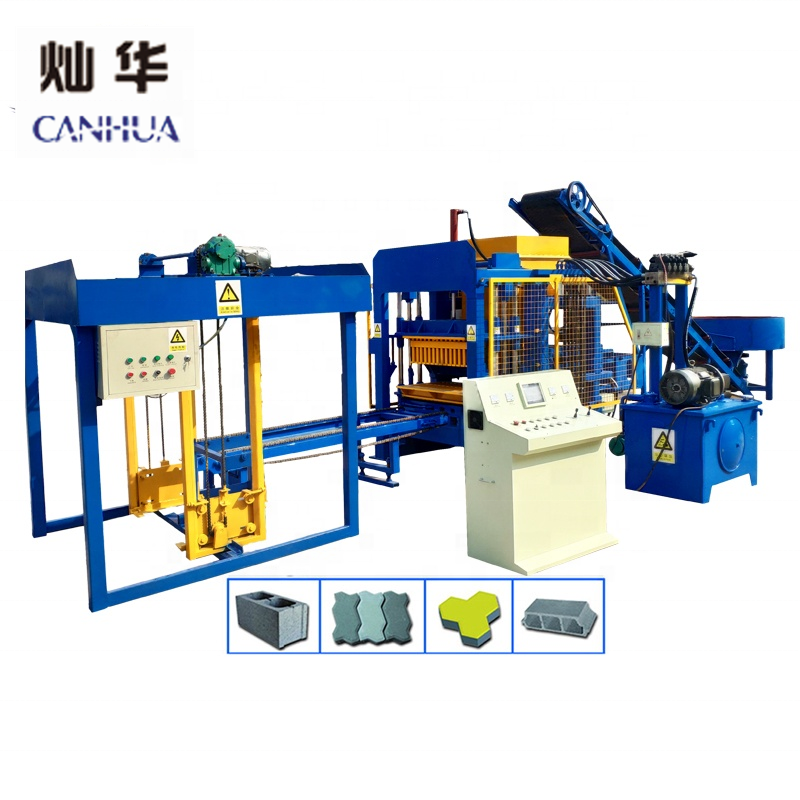

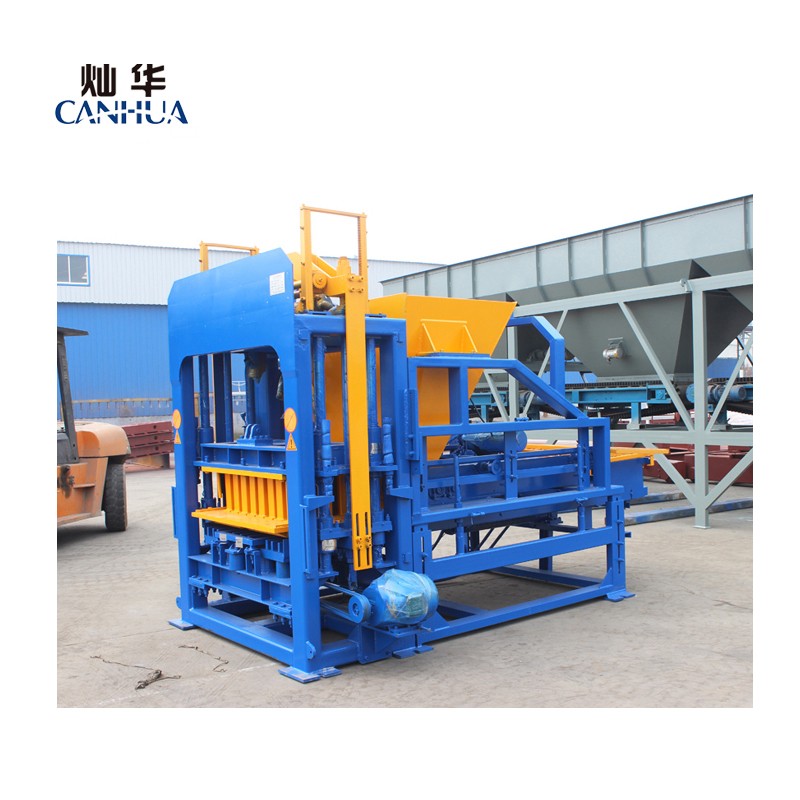

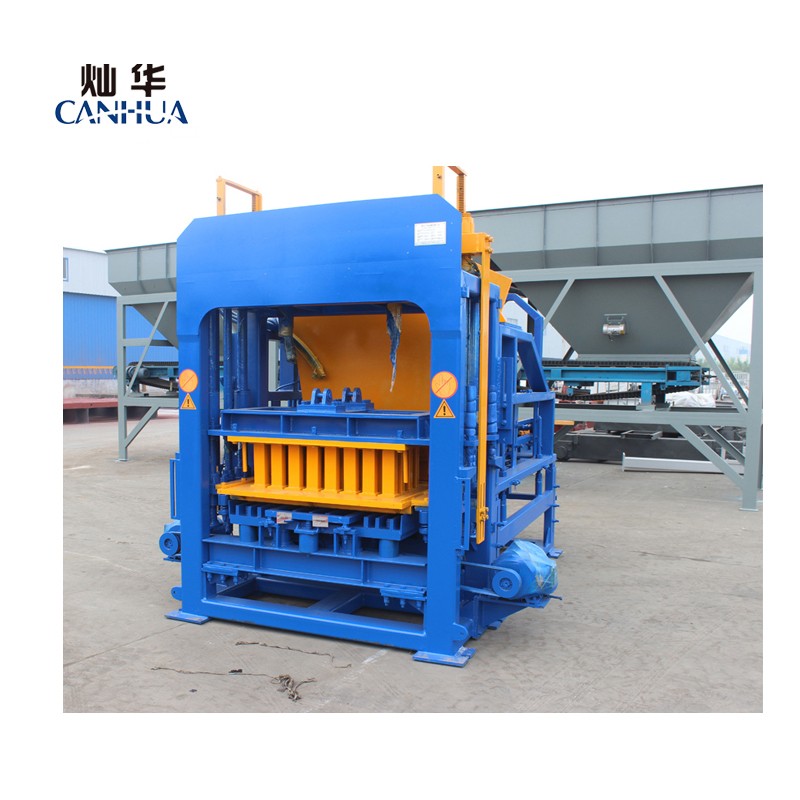

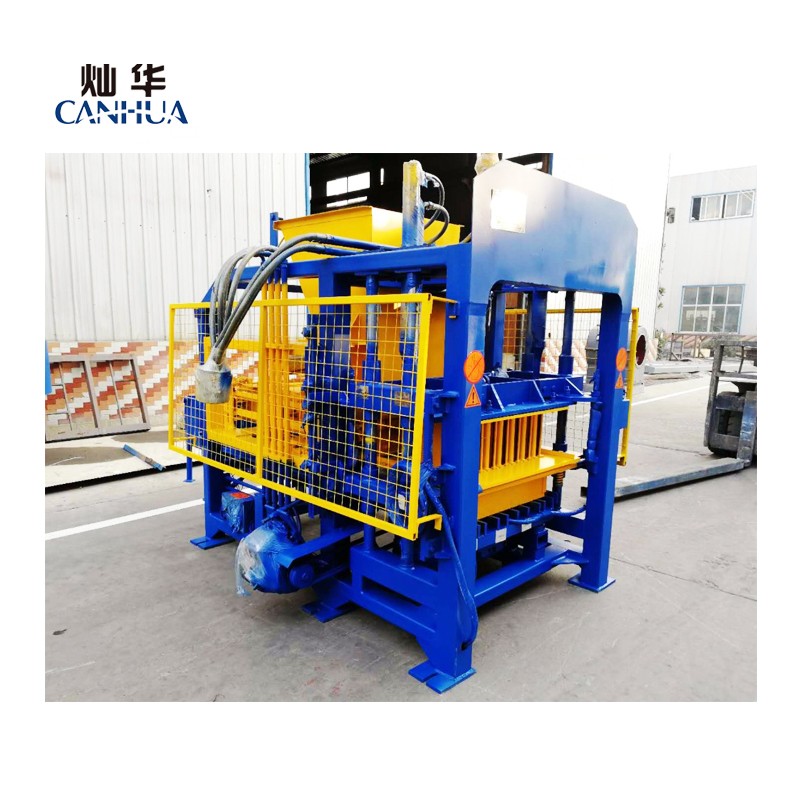

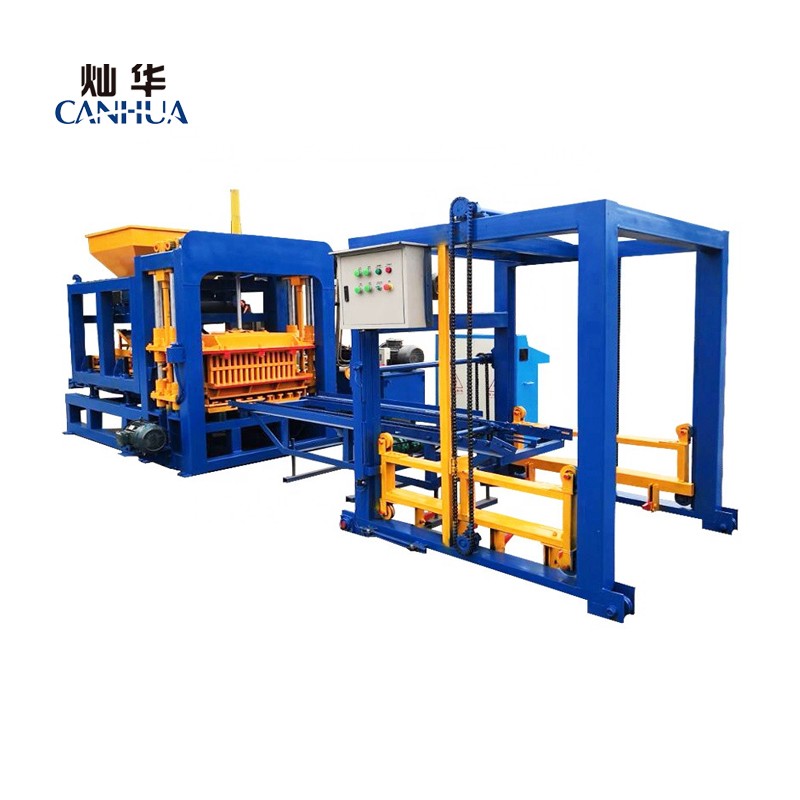

QT4-15 automatic habiterra cement pallet hollow brick block making machines plant dubai price

It is also called burn-free block making machine. It is usually used to produce concrete bricks. These concrete bricks don’t need to be burned. They can be put into use only after a short period of drying.

1). Equipped with color face material feeding device,it could make various color face bricks,through-body environmental protection bricks,road curb rocks,hydraulic blocks and solid bricks and so on.

2). It is a compact automatic concrete block making machine with electric and hydraulic system,each procedure action locks with each other to guarantee the machine operate safely,easily and dependably.

1.Main Technical Parameter

Dimension of host machine	4000x1800x2800mm
Pallet size	850x580x25mm
Weight of host machine	3.5T
Vibration force	50KN
Installed capacity	26kw
Molding cycle	15-20s
Intensity of pressure	15Mpa
Vibration frequency	2800-4500

QT4-15(图3)

QT4-15(图4)

QT4-15(图9)

Theoretical Capacity

Size(LxWxH)	Cycle	Pcs/Mould	Pcs/Hour
400x200x200mm hollow block	15-20s	4	720-960
240x115x90mm porous block	15-20s	12	2160-2880
240x115x53mm solid brick	15-20s	26	4680-6240
200x100x60mm paver	20-25s	16	2304-2880
200x163x60mm paver	20-25s	12	1728-2160

1). The whole line automatic concrete block production line equipment is mainly the full container sea shipping,

2). Block machine equipment finish manufacturing and testing, next to clean up, and then do another paint protection.

3). Before shipment to use plastic film winding, wrapped the entire concrete block machine in case of water or moisture.

4). Then load the concrete hollow block machine into the container by forklift.

5). During loading to tighten the machine with reinforcement ring in container, so as to avoid the damage by transport bumps on the brick making machine.

QT4-15(图14)
