name: QT4-24 high quality construction ecological automatic small concrete block making machine
date: 2022-04-22 15:36:57
view: 164
about:

  Shandong Canhua International Trade Co.,Ltd. was established in 1994. We are professional machinery enterprise with perfect incorporation of development, production, sales and service. Our mainly products includes interlocking block machine, hydrauli...




DETAIL



QT4-24 high quality construction ecological automatic small concrete block making machine


QT4-24 high quality construction ecological automatic small concrete block making machine

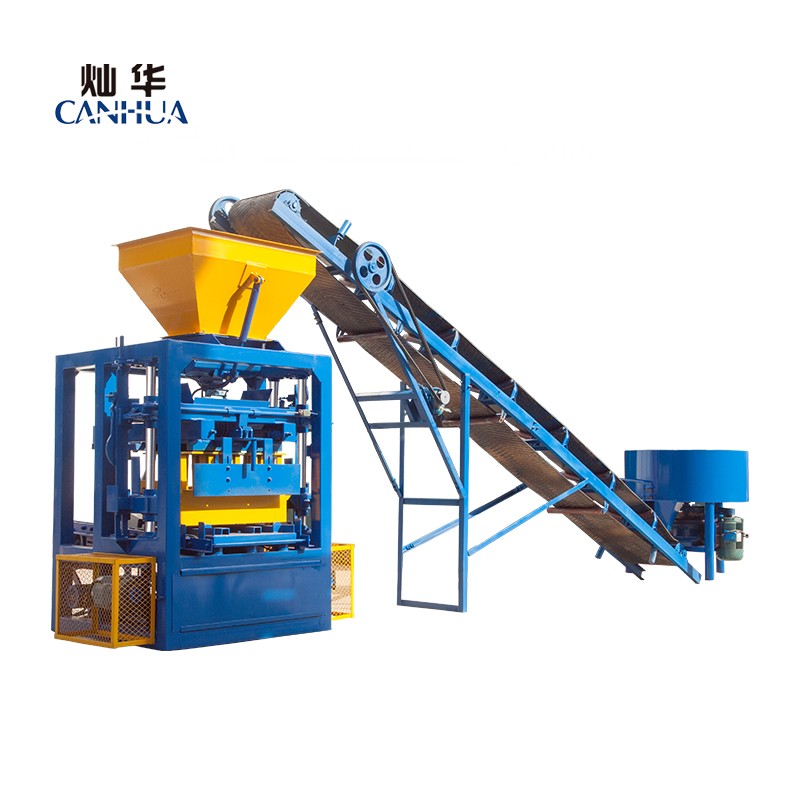

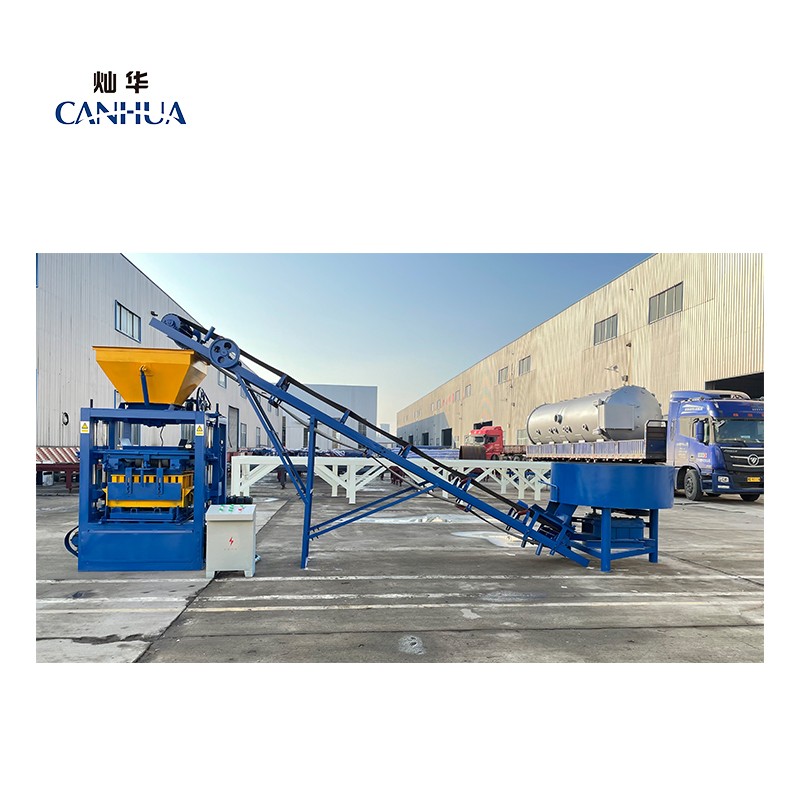

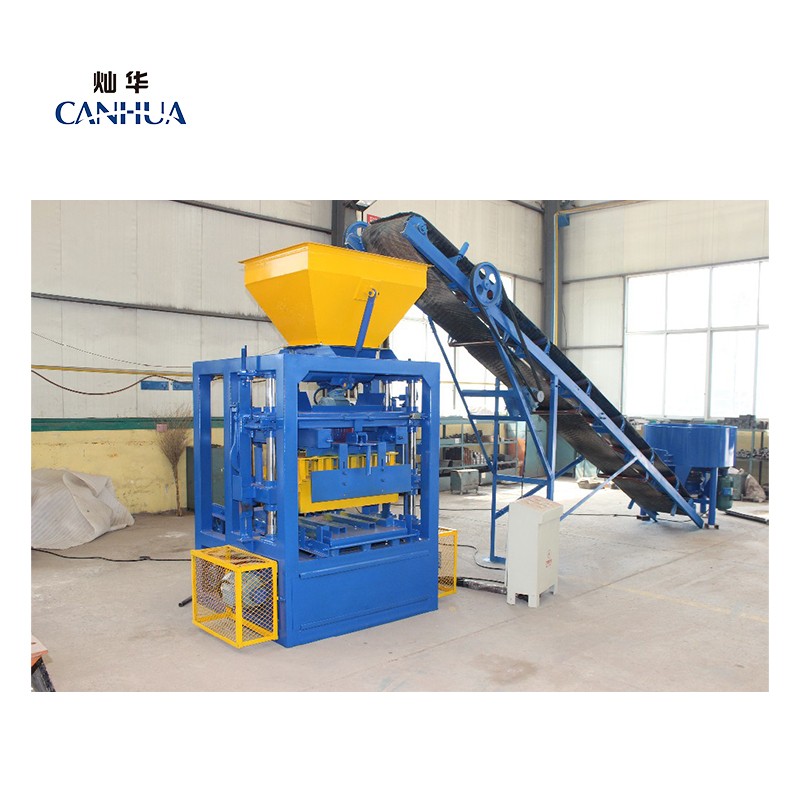

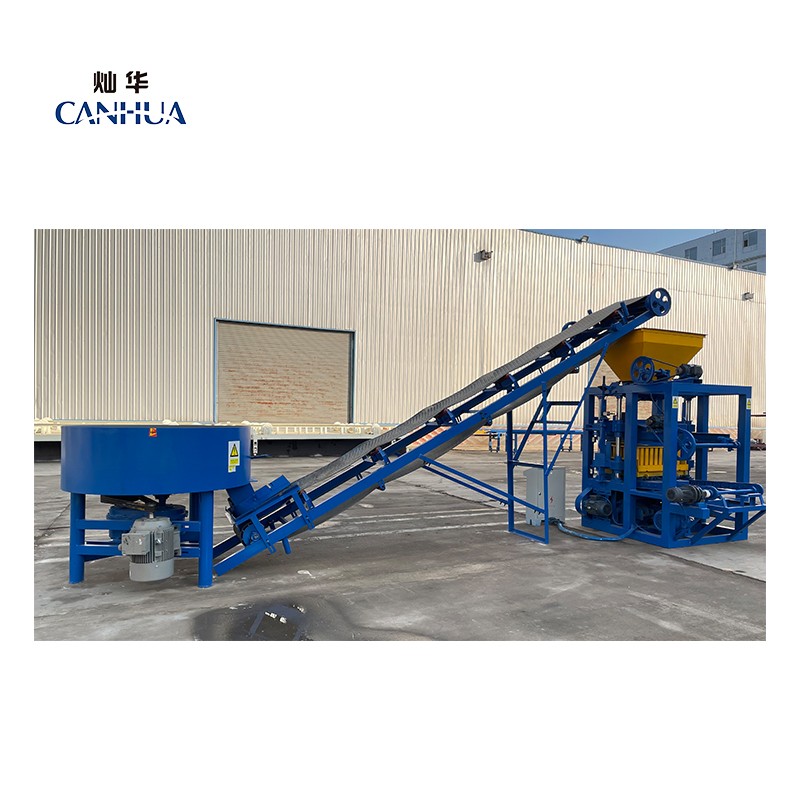

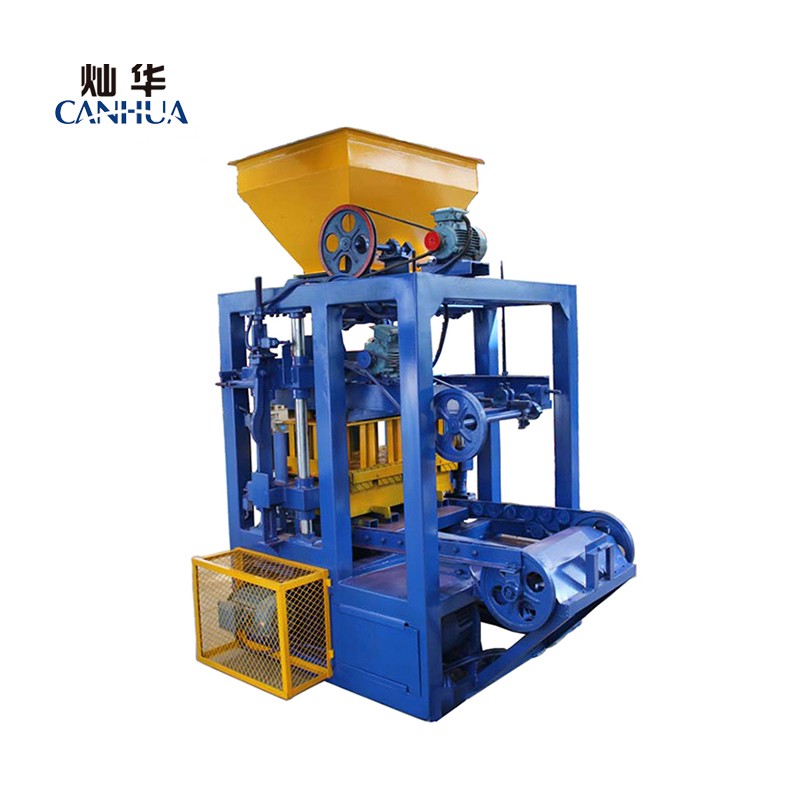

This machine is one small type hollow block making machine, can make different size hollow block, solid bricks, pavers, S blocks and so on.

We accept your customized hollow block mold size, also can supply you brick samples for your reference.

QT4-24 high quality construction ecological automatic small concrete block making machine

1.Main Technical Specifications

Dimension of host machine

2060x1880x2240mm

Pallet size

850x550x25mm

Weight of host machine

1.8T

Vibration force

35.5KN

Power of host machine

13.35kw

Molding cycle

24-26s

Intensity of pressure

15Mpa

Mixer model

JD350



2.QT4-24 cement hollow brick machine worksite details and material information

1). Area: Workshop area: 80-100m2, all factory area 3000m2, the bigger, the better.

2). Workers :  five to eight.

3). Ratio of raw material: cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.

4). hollow block weight:

 (400*200*200) :17KG,(190*140*190):13.5KG,(390*90*190):10KG

5). Raw material consumption per day:50-70T

6). Water consumption per day:3%-5% of raw material Weight.



Concrete block machine line area needed

Workshop

60 m2

Office

50m2

Total area

About 2000m2

Worker arrangement

operate

1

Material loader

1

Drive trolley

1

Total

3

QT4-24 high quality construction ecological automatic small concrete block making machine

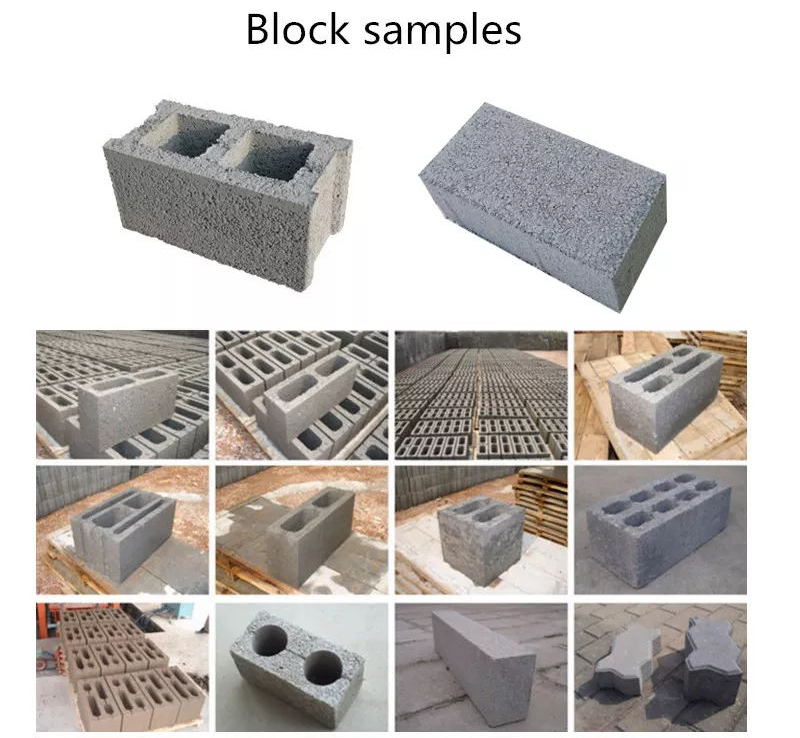

Theoretical capacity of QT4-24 concrete hollow block machine


Item

Block

Production capacity


1

Hollow/Solid block

400-200-200mm

4 pcs/mold
4800 pcs/8h

 QT4-24 high quality construction ecological automatic small concrete block making machine

2

Hollow/Solid block

400-150-200mm

5 pcs/mold
6000 pcs/8h

3

Hollow/Solid block

400-100-200mm

7 pcs/mold
8400 pcs/8h

4

Hourdis block

450-120-200mm

6 pcs/mold
7200 pcs/8h

 QT4-24 high quality construction ecological automatic small concrete block making machine

5

S shape paver

225-112.5-60mm

12 pcs/mold
14400 pcs/8h

 QT4-24 high quality construction ecological automatic small concrete block making machine

6

I shape paver

200-160-60mm

8 pcs/mold
9600 pcs/8h

QT4-24 high quality construction ecological automatic small concrete block making machine

7

Holland paver

200-100-60mm

12 pcs/mold
14400 pcs/8h

 QT4-24 high quality construction ecological automatic small concrete block making machine

QT4-24 high quality construction ecological automatic small concrete block making machine(图9)


QT4-24 high quality construction ecological automatic small concrete block making machine

QT4-24 high quality construction ecological automatic small concrete block making machineQT4-24 high quality construction ecological automatic small concrete block making machine

QT4-24 high quality construction ecological automatic small concrete block making machine

QT4-24 high quality construction ecological automatic small concrete block making machine

1)Superior vibratory effect: Simultaneous vibration. the hollow blocks produced are of good quality, large density and high strength.
2)High quality block machine body: Best steel Q235B and special welding techniques (CO2 gas protective welding ) make the block machine strong and of high resistance to vibration.
3)High Quality Mould: All brick making machine moulds are can use more than 120,000 times.

4)This machine is much easy operated, and very low investment, you can make many difference blocks and bricks by changing mold easily.
