QT5-15 automatic hydraulic concrete curb machine for sale

This machine is hydraulic type, with high pressure. Can make big size concrete curb stone blocks. Also you can use to make hollow block and color paver, it is multi-functional.

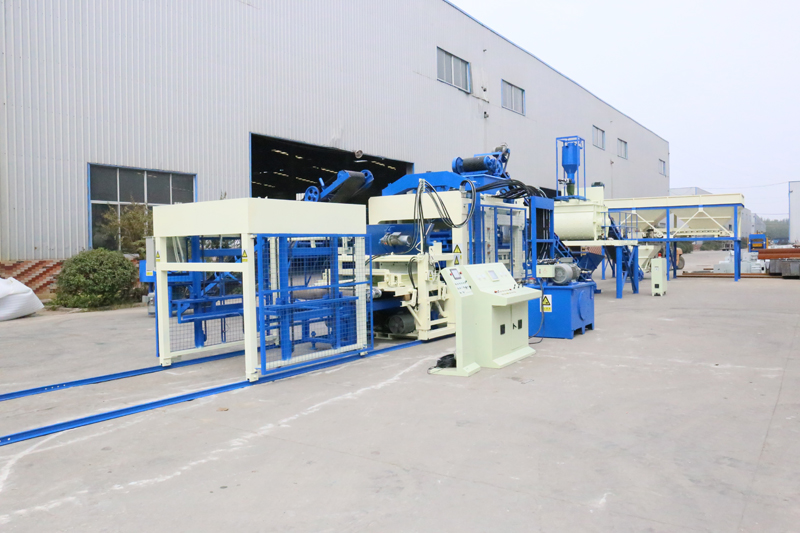

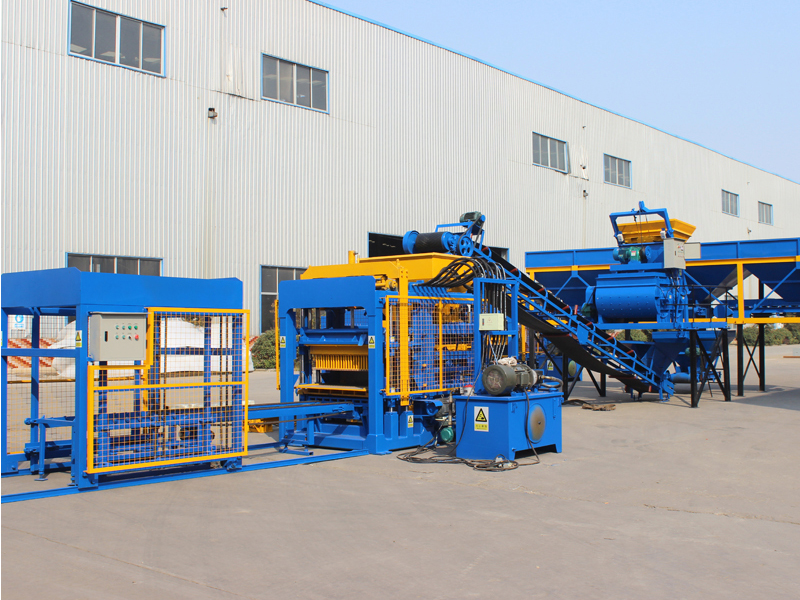

 QT5-15 automatic hydraulic concrete curb machine for sale(图1)

1.Brief introduction:

Qt5-15 hydraulic concrete curb brick making machine adopts imported color touch screen and PLC to control and equipped with data input and output device. It is a medium type of modern cement brick making machine with high efficiency and energy saving, large output, good quality and small investment. It is the first choice of hydraulic brick making machine for small and medium-sized brick factories. As long as the replacement of mold can produce highway shoulder, river brick, slope brick, square brick, dock brick, grass planting brick and other products.

2.Brand of some parts:

Name

Brand

PLC

Vigor, Taiwan (original)

Intermediate relay

ABB

Cross switch

ABB

Emergency stop

Siemens

Contactor

Schneider

Frequency control

Sinee

Hydraulic ratio control valve

HNC,Taiwan

Full automatic brick production line included:

QT5-15 Automatic Block Production Line

No.

Name

Quantity

Note

1

PLD1200 Batching Machine

1 Set

Include Sieve System

2

JS500 Mixer

1 Set


3

Belt Conveyor

1 Set


4

Concrete Feeder

1 Set

Include Pallet Conveyor

5

Main Machine

1 Set

Include One Mould

6

Wet Block Conveyor

1 Set


7

Automatic Stacker

1 Set


8

Hydraulic Oil Station

1 Set


9

Electric Control Cabinet

1 Set


10

Color Feeder

1 Set

Optional Part

11

Pallet

1500 Pcs

Optional Part



3.Technical details of host block machine

Dimension of host machine

3200×2300×2650mm

Pallet size

1150×580×30mm

Weight of host machine

7.5T

Vibration force

60-70KN

Installed capacity

41.3KW

Molding cycle

15-20S

Intensity of pressure

15Mpa

Mixer model

JS750

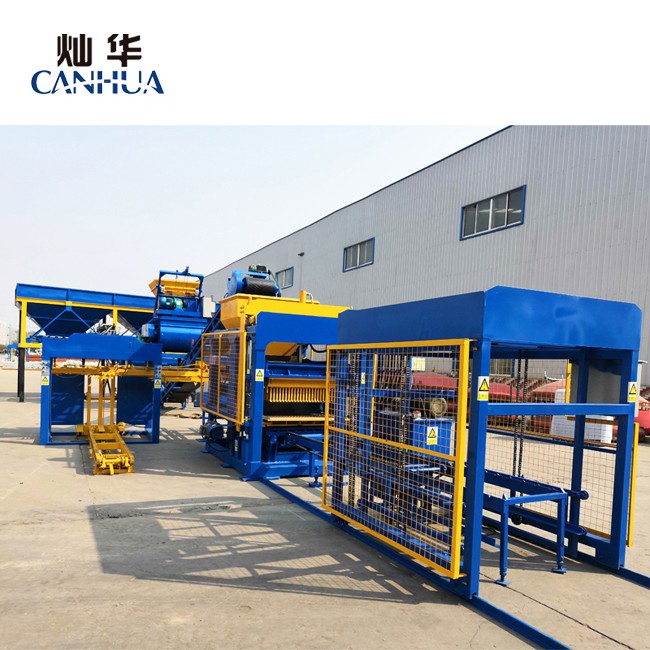

QT5-15 automatic hydraulic concrete curb machine for sale(图2)

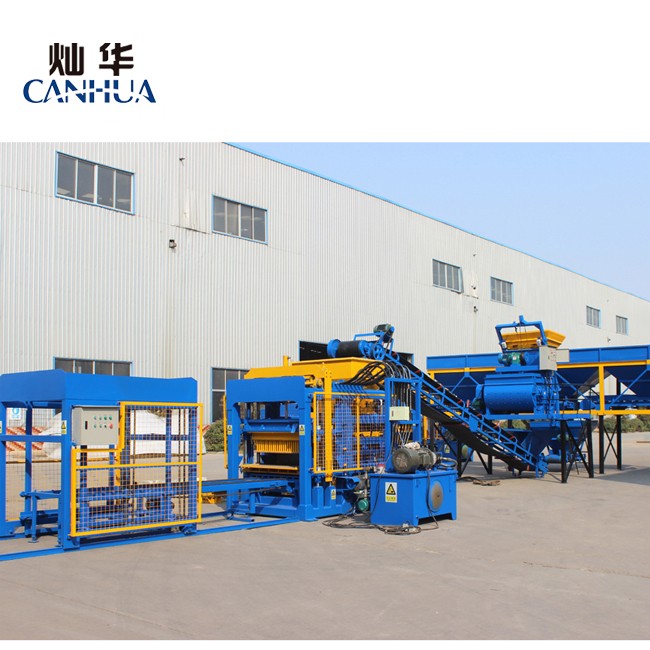

QT5-15 automatic hydraulic concrete curb machine for sale(图3)

QT5-15 automatic hydraulic concrete curb machine for sale(图4)


4.Main production specification and theoretical productivity

Block capacity

Nearly all hollow blocks, interlocking bricks, pavers, curbstone could be produced by QT5-15 hydraulic press interlocking brick machine, please refer to the main blocks capacity below:

Block type


Size (L*W*H)

Pcs/mould

Pcs/day

Hollow block

QT5-15 automatic hydraulic concrete curb machine for sale(图5)

400×200×200mm

5

9600

Hollow block

QT5-15 automatic hydraulic concrete curb machine for sale(图6)

400×150×200mm

6

11520

Hourdi block

QT5-15 automatic hydraulic concrete curb machine for sale(图7)

530×160×195mm

6

11520

Stock block

QT5-15 automatic hydraulic concrete curb machine for sale(图8)

220×110×75mm

24

46080

Paving block

QT5-15 automatic hydraulic concrete curb machine for sale(图9)

200×100×60mm

18

34560

Interlocking brick

QT5-15 automatic hydraulic concrete curb machine for sale(图10)

225×112.5×60mm

20

38400

Note:

1).We make mould according to size and shape of clients’ block.

2).The above is theoretical production, real production 8 hours depend on different raw materials, working efficiency and block specifications.

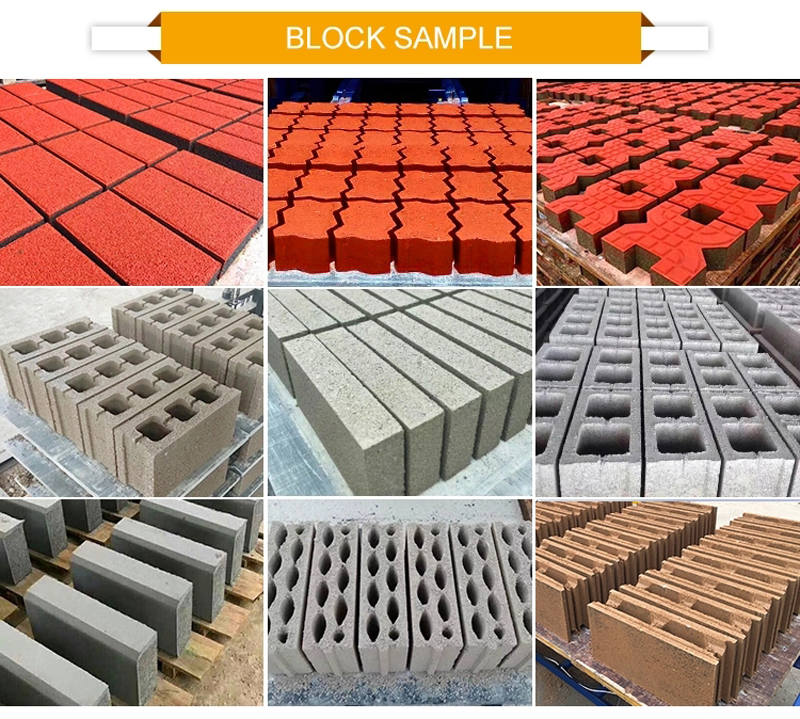

The below is some other blocks samples produced by this hydraulic interlocking brick machine:

 QT5-15 automatic hydraulic concrete curb machine for sale(图11)



5.The shipping notes and other terms:

1). All kinds of mould can be made by customer's drawings.

2). All price are based on FOB, QINGDAO, China

3). Payment: by T/T 30% down payment, 70% upon machinery completion.

4). Delivery: After finishing all the payment

5). All the parameters above just for reference, for they are updating all the time

6). Package: Nude packing

7). Warranty: All the machine enjoys one year’s warranty, in this period , any problems or parts of the machine, please feel free to contact us . We will try our best to make it .

 QT5-15 automatic hydraulic concrete curb machine for sale(图12)

6.Why choose us

1).Our block making machinery adopts advanced wire cutting, seamless welding, best steel in China as raw material for production.

2).Block mold is made with carburizing heat treatment, life lasting 9-10 years

3).We offer comprehensive equipment for concrete block handling. For example, for egg laying concrete hollow block machines, transport of fresh concrete from batching and mixing plant to block machine is preferably made with a forklift equipped with a hopper or with a special loader.

4).Providing our customers best qualified machine and most satisfied service with lowest price is our permanent goal.

5).Helping customers with the foundation and installation; technical training of operations and maintenance of the concrete curb machine.

QT5-15 automatic hydraulic concrete curb machine for sale(图13)
